The Ariel Atom 3S


All Good things do eventually come to an end...

Announcing the numbered Ariel Atom 3S Final Edition Series.

The Ariel Atom burst on to the lightweight sportscar scene with unique styling, insane performance, and unmatched driving enjoyment. The Ariel Atom 3S took this to the next level and this Final Edition offering will be no different.

With the introduction of the Ariel Atom 4, it only seemed necessary to give the Ariel Atom 3S a proper send off. With its many, performance offerings, and extensive list of standard equipment, it was a difficult task to improve upon the Atom 3S platform. However, we simply took all of the most popular customer selected options and included them into the base price of the car. Now, your Ariel Atom 3S simply needs your input on colors to rival previous +$100,000 builds from the past.

Taking the Ariel Atom 3S send off a step further, we are limiting the last vehicle builds to 10 units. Your choice to acquire this Limited Edition will be solidified with a custom numbered build plaque and custom painted Wing Endplates that announce your model and build number. Also included will be a Build Binder documenting your Atom’s production process from Chassis Fabrication through Delivery.

Also included in your Atom 3S purchase is an High Performance Drivers Education/Track Day package. We’ve Partnered with Chin Motorsports to offer an on track experience, along with personalized instruction, to ensure you’re driving your Atom 3S at its maximum potential. You will have a choice of tracks from around the country, and select a date that works best for your schedule.

Taking orders now for Spring 2019 Delivery!

Model Advantages

-Numbered Build Plaque & Identifiers-

Each Final Atom 3S is affixed with a custom Numbered plate to distinguish build order. The Final Edition is also designated by custom Livery on Wing end-plates.

-Collector Build Binder-

You will be provided with a keepsake gift that will include your specific build documents, candid photos, and signatures from the Build Technicians & Management Team

-Model Specific No-Cost Options-
($6,835 Value Added)

included in the base Price of the Final Edition :

•Front and Rear Carbon Wing kit
•Premium Color Package - Your Selection
•Custom Chassis Color - Your Selection
•Lexan Side Panels - Clear or Tinted

-Complementary Trackday delivery event-

Spend a weekend getting to know your car with personalized Instruction in a controlled environment. This Complementary Package includes On-Site Professional Coaching with Chin Motorsports at a wide variety of available tracks and dates.

Atom 3S Specifications


1450 lbs

• 0-60mph: <2.8 sec • 0-100mph: 6.7 sec

• 1/4 mile: ≈ 10.7 sec • VIR Full Course: 1:58

• 365 bhp @7500 RPM • 310 lbs/ft torque @4400 RPM

Starting at $95,775


  • Turbocharged Honda 2.4L i-VTEC (K24Z7)

  • 6-Speed Manual gearbox w/ limited slip differential

  • Performance Clutch

  • Proprietary Intake/Exhaust System

  • Primary aluminum radiator (front)

  • Secondary aluminum radiator (right pod)

  • Air:Water intercooler (left pod)


  • JRi adjustable dampers w/ 2 piece coil spring

  • Double unequal length fabricated wishbones

  • Aluminum bell cranks w/ needle roller bearings

  • Adjustable suspension pushrods

  • Adjustable inboard joint and outboard rod ends

  • Lightweight fabricated uprights

  • Quick Ratio alloy Rack & Pinion

  • Quick-Release motorsport suede steering wheel


  • Alcon Motorsport Four-Piston Calipers

  • 290mm Alcon Big Brake Kit w/2-Piece Vented Discs

  • Cockpit Adjustable Front/Rear Brake Bias

  • Tilton Adjustable Aluminum Pedal Box

  • Tilton Paired Front/Rear Master Cylinders

  • Full Length Stainless Steel Brake Lines

  • Performance Pad Fiction Material

  • Parking Brake Kit Standard


  • 5-Spoke Motorsport Wheels - F:15x7 R:16x8

  • Toyo R888R Tires - F:205/50/15 R:245/45/16

Vehicle Electronics

  • Traction Control - Five level adjustment (incl. off)

  • LCD back lit digital dash with speed, RPM, temperature, fuel level, odometer, gear position, and shift-light display

  • Competition master safety switch

  • RFID Electronic Immobilizer System (two fobs)

  • Full light Package Standard

Engine electrical/Fuel

  • Indirect multi-port grouped fuel injection

  • Proprietary tuned Hondata engine management

  • Continuous flow Marwal 3.5 bar fuel pump

  • Twin Fuel Filters

  • 10 gallon aluminum fuel tank


  • Engineered Jig Utilization

  • Primary TIG / Secondary MIG welds

  • CNC Component Construction

  • Laser Cut/Notched

  • Crew/DOM Low Carbon Steel

  • Aluminum bulkheads

  • 244 point primary/secondary QC inspection

  • Powder Coat Finish (Chassis)

  • Hand Laid Gel-Coated Composite Body Panels

  • Wet Carbon Options (Bonnet, Dash Surround, Fenders, Airbox Cover/Snorkel

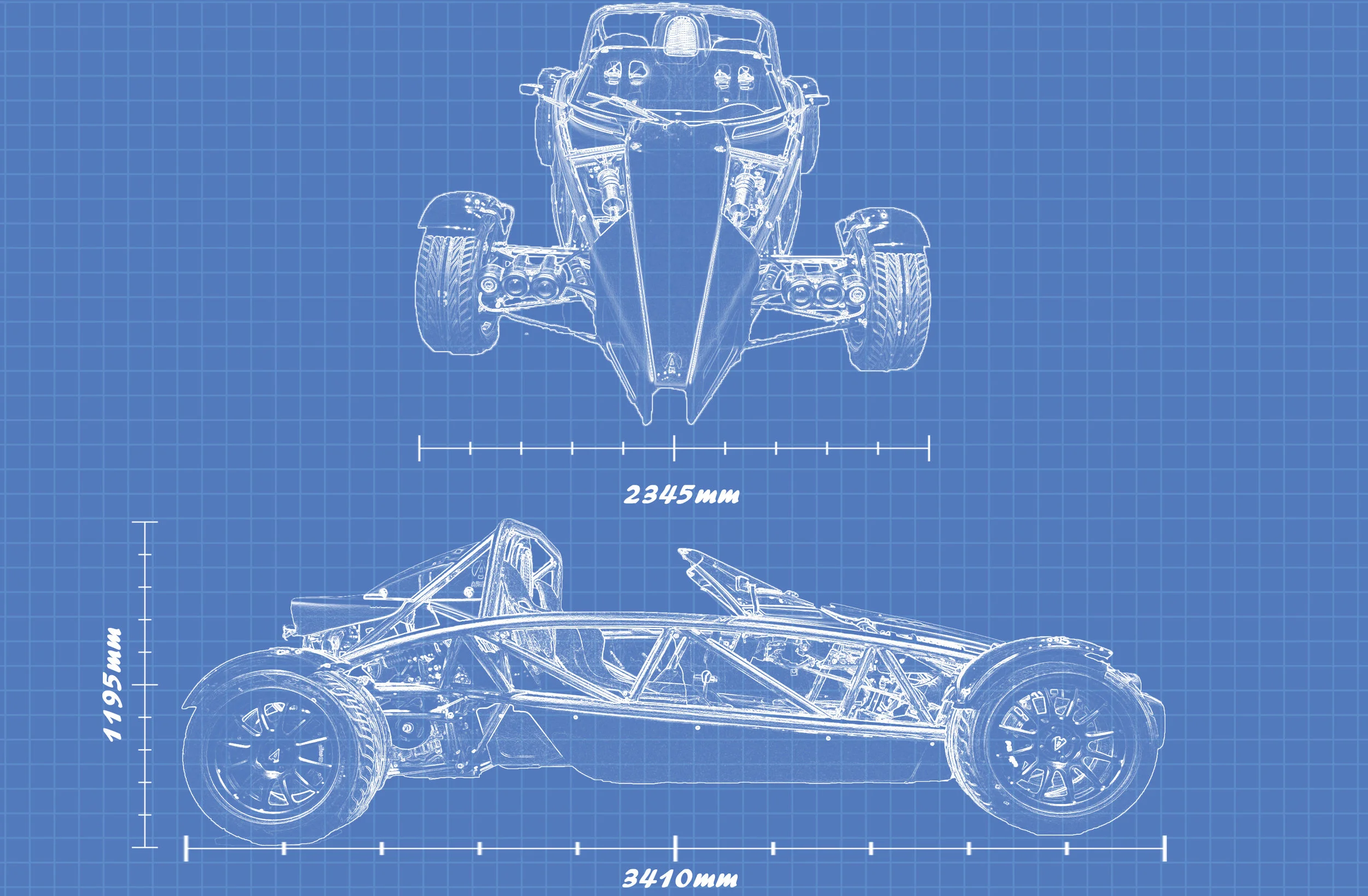

  • Length: 3410mm

  • Height: 1195mm

  • Width: 1890mm

  • Track: 1600mm

  • Wheelbase: 2345mm


Pricing & Options

The Ariel Atom 3S has the most aggressive and mind blowing performance figures yet for the Ariel atom 3 platform. Click the link below for a full Option & pricing list:

Contact & Questions

Ready for the next step or have questions? Check out what it takes to build your Ariel, contact us, or find your local Dealer:
