Ariel Nomad 1
North American production 2016-2022
Nomad Tactical Specifications
Performance
1750 LBS
• 0-60mph: ≈3.5 sec • 0-100mph: ≈8 sec
• 1/4 mile: ≈ ≈12.5 sec • Top Speed: ≈120mph
• 230 bhp @7500 RPM • 200 lbs/ft torque @4400 RPM
Drivetrain
Honda 2.4L i-VTEC (K24Z7)
6-Speed Manual gearbox w/ limited slip differential
Proprietary Intake/Exhaust System
Primary aluminum radiator
Steering/Suspension

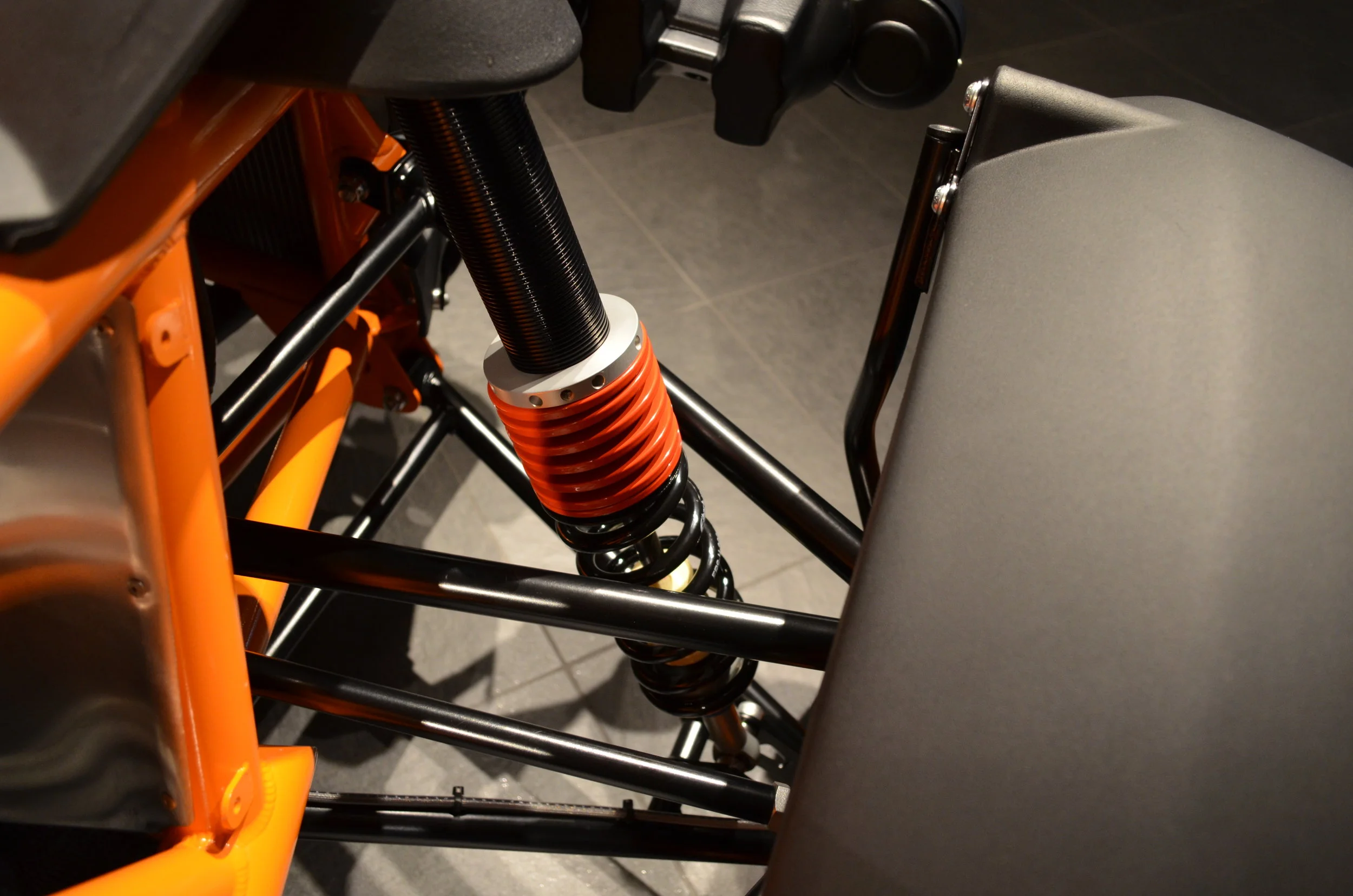

Adjustable JRi Dampers w/Remote Reservoirs
Double unequal length fabricated wishbones
Heavy Duty fabricated uprights
Quick Ratio alloy Rack & Pinion
Quick-Release motorsport suede steering wheel
Brakes
Alcon Motorsport Four-Piston Calipers
290mm Vented Discs
Tilton Adjustable Aluminum Pedal Box
Tilton Paired Front/Rear Master Cylinders
Full Length Stainless Steel Brake Lines
Performance Pad Fiction Material
Alcon Hydraulic Handbrake for Rear
Wheels/Tires
***NEW FOR 2021 ORDERS***
TDM Pro Race 1.2 (12 Spoke) - F:16x7" R:16x7" (Black)
BFG Mud Terrain T/A KM3 - F:235/70/16 R:235/70/16
High Mounted Spare Wheel/Tire
Vehicle Electronics
LCD back lit digital dash with speed, RPM, temperature, fuel level, odometer, gear position, and shift-light display
Competition master safety switch
Road Lighting Kit Standard
RFID Electronic Immobilizer System (two fobs)
Light Bar (Four Overhead Spots w/Halos)
Warn Winch
Engine electrical/Fuel
Indirect multi-port grouped fuel injection
Proprietary tuned Hondata engine management
Continuous flow Marwal fuel pump
Twin Fuel Filters
13 gallon aluminum fuel tank
Chassis/Body
Engineered Jig Utilization

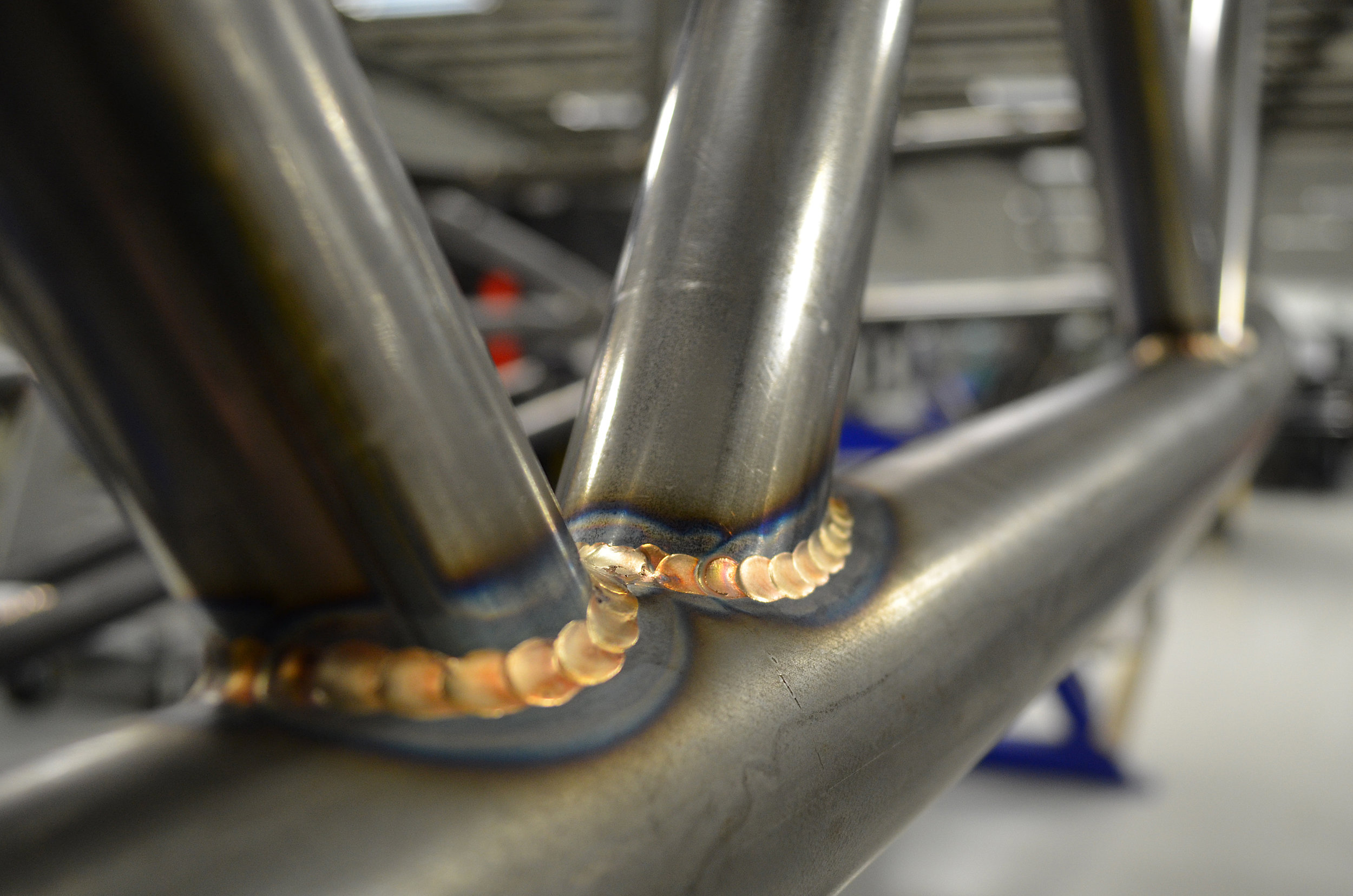

Primary Bronze welds
CNC Component Construction
Laser Cut/Notched
Crew/DOM Low Carbon Steel
Aluminum bulkheads
282 point primary/secondary QC inspection
Powder Coat Finish
Flexible roto-mold toughened polyethylene/composite mix
Dimensions
Length: 3556mm
Height: 1499mm
Width: 1854mm
Gallery
